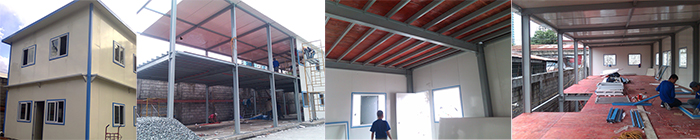

T house stystem likes the traditional house design, the steel structure at inner side while the roof and wall at exterior side. This way require stronger steel structure and strengthen sandwich panel, but last longer the life of building.
Advantages of T house:
1. Install fastly. Average time of installation is around 6 workers finish 120sqm building within 2 days.
2. Multi-choice on wall decoration. Like using PVC cladding plate, WPC wall cladding, and PU metal panel.
3. Flexible on materials. Many kinds of steel materials could be used in T house, According to project requirments choosing right materials to achieve lifespan from 10~20years.
4. Many kinds of T house design, like single slope roof, double slope roof, and hipped roof. The nos. of floor could be single floor, double floor, and triple floor.
Main Materials and Technical Parameter:
Main Materials | Techincal Parameter
|
Main Steel | square tube, H beam, I beam | Size
| nt*mt*F3h(n,m=1150mm, h=1000mm, F=floor)
|
Wall Panel | (EPS, Propor foam, rockwool)50mm sandwich panel | Floor Load | 150~250kg/m2 |
Roof Panel
| (EPS, Propor foam, rockwool)50mm sandwich panel | Roof Load | 50~80kg/m2 |
Window | PVC or Alu window | Wind Risistance | 120m/s |
Door
| steel or sandwich panel door | Earthquake Risistance | 8 grade |
Flooring | plywood, fibercement board, MgO board
| Lifespan | 10~20years |
