ROCK WOOL SANDWICH WALL PANEL

Commodity details

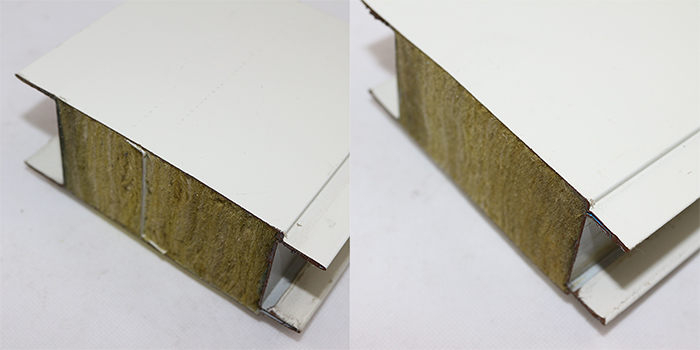

Rock Wool is a product derdived from stone, naturally have a great fireproof performance. One piece of sandwich panel made by two color steel sheets and a layer rockwool get their features, also has great fireproof performance. The fire risistance house reach 30mins to 60mins. Rockwool sandwich panel does well in sound absorbing, it could meet the requirements on fireproof and sound insulation at one time.



Composite MaterialsPPGI+Glue+Rockwool layer+Glue+PPGI
JointTongue and groove
Product CodeBF-RW-W

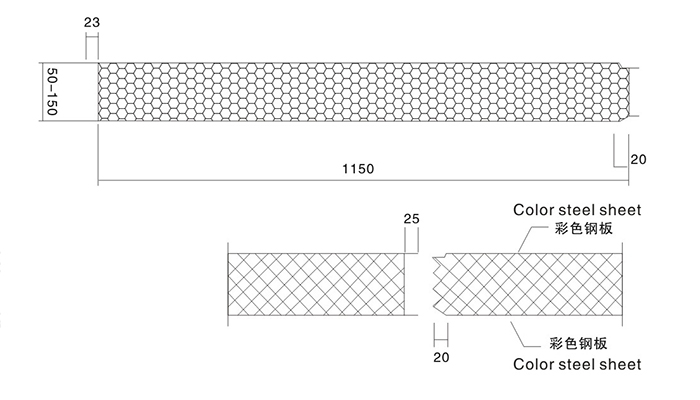

Panel effective width(mm)1150mm or 950mm
Panel Length(mm)1500mm to 11800mm
PPGI thickness(mm)0.3mm~0.6mm
Panel thickness(mm)50mm, 75mm,100mm,125mm, 150mm
Rock Wool density(kg/m3)60kg, 80kg, 100kg, 120kg, or customized
Fire PerformanceFireproof
Fire Resistance A1 (30mins to 60mins fire risistance hour)
Thermal conductivity≤0.045W/(m2.k)
Thermal insulation0.6cal/m2/h/c
FeaturesFireproof and sound insulation.
Applicationused as wall, partition, ceiling, fense material on buildings.
